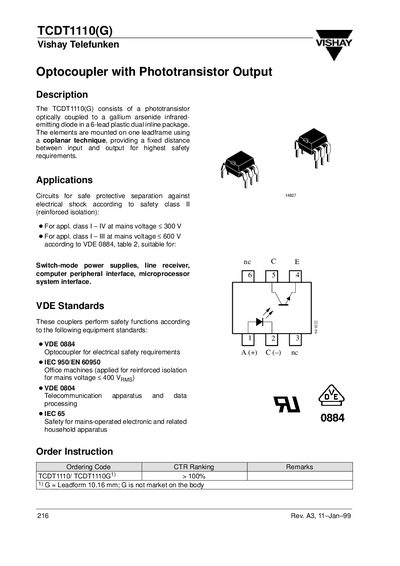

The TCDT1110(G) is an optocoupler produced by Vishay Telefunken. It consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 6-lead plastic dual inline package. This product meets the safety requirements of safety class II (reinforced isolation) and can be used in switch-mode power supplies, line receivers, computer peripheral interfaces, and microprocessor system interfaces.
The TCDT1110(G) is an optocoupler consisting of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 6-lead plastic dual inline package. It features reinforced isolation suitable for safe protective separation against electrical shock according to safety class II and III, meeting standards such as VDE 0884 and IEC 950/EN 60950.
| Package Type | 6-lead plastic dual inline package |
|---|---|
| Isolation Test Voltage (RMS) | 3.75 kV |
| Rated Isolation Voltage (RMS) | 600 Vrms |
| Forward Current | 60 mA |
| Collector Emitter Voltage | 70 V |
| Coupling Capacitance | 0.3 pF |
The maximum forward current for the input emitter is 130 mA.
The rated isolation voltage RMS is 600 Vams.
The device operates within an ambient temperature range of -55 to +100 °C.
