SMF5V0A to SMF51A is a surface mount ESD protection diode designed for LAN protection applications in accordance with IEC 61000-4-2 and IEC 61000-4-4 standards. It features low incremental surge resistance, excellent clamping capability, fast response time, and high temperature soldering guarantee.

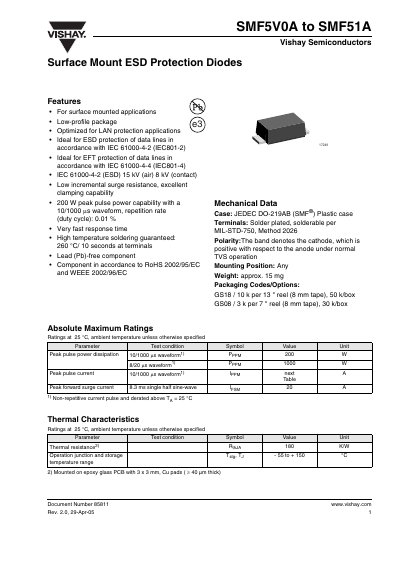

This document is a datasheet for Vishay Semiconductors' SMF5V0A to SMF51A series of Surface Mount ESD Protection Diodes. These components are designed for surface-mounted applications with a low-profile package, specifically optimized for LAN protection applications. They provide ideal ESD protection for data lines in accordance with IEC 61000-4-2 and EFT protection in accordance with IEC 61000-4-4.
| Peak pulse power dissipation (10/1000 µs waveform) | 200 W |
|---|---|
| Peak pulse current (10/1000 µs waveform) | next A |
| Peak forward surge current (8.3 ms single half sine-wave) | 20 A |
| Thermal resistance | 180 K/W |
| Operation junction and storage temperature range | - 55 to + 150 °C |
| Package type | JEDEC DO-219AB (SME®) |
The diodes have a peak pulse power capability of 200 W with a 10/1000 µs waveform.
The diodes can operate between -55 and +150 °C.
