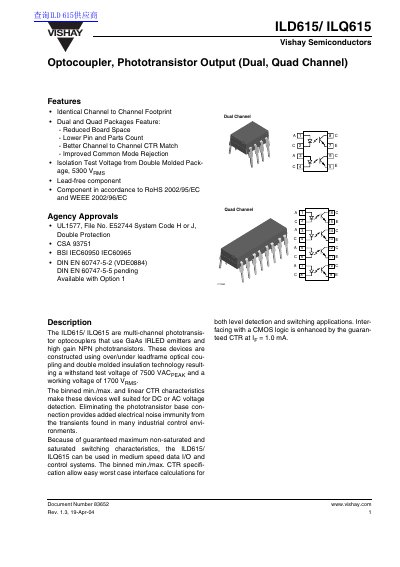

This document is the instruction manual of VISHAY ILD615/ ILQ615, which mainly introduces the features and characteristics of the product.
The ILD615/ILQ615 are multi-channel phototransistor optocouplers utilizing GaAs IR LED emitters and high gain NPN phototransistors. Constructed with over/under leadframe optical coupling and double molded insulation technology, these devices offer a withstand test voltage of 7500 VAC PEAK and a working voltage of 1700 VRMS. They are designed for DC or AC voltage detection and medium speed data I/O applications, featuring guaranteed maximum non-saturated and saturated switching characteristics.
| Withstand Test Voltage | 7500 VAC PEAK |
|---|---|
| Working Voltage | 1700 VRMS |
| Forward Current | 60 mA |
| Surge Current | 1.5 A |
| Operating Temperature | -55 to +100 °C |
| Common Mode Rejection | 5000 V/µs |
The isolation test voltage is 5300 VRMS for 1.0 second.
Yes, the document states they are a lead-free component.
The devices are available in Dual Channel and Quad Channel configurations.
