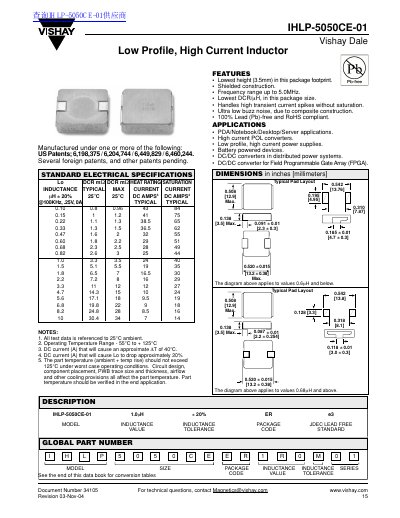

This document describes the features of Vishay Dale's IHLP-5050CE-01 low profile, high current inductor. The product has the lowest height (3.5mm) in this package footprint, shielded construction, frequency range up to 5.0MHz, lowest DCR/µH in this package size, handles high transient current spikes without saturation, ultra low buzz noise, 100% lead (Pb)-free and RoHS compliant.
The document describes the Vishay Dale 15IHLP-5050CE-01 series of low profile, high current inductors. Key features include a lowest height of 3.5mm within its package footprint, shielded construction to reduce EMI, and a frequency range up to 5.0MHz. The components are designed to handle high transient current spikes without saturation and feature ultra-low buzz noise due to composite construction.
| Operating Temperature Range | -55 °C to + 125 °C |
|---|---|
| Maximum Part Temperature | 125°C |
| Frequency Range | up to 5.0MHz |
| Height (Max) | 3.5mm |
| Inductance Tolerance | ± 20% |
Yes, the component is 100% Lead (Pb)-free and RoHS compliant.
It is suitable for PDA/Notebook/Desktop/Server applications, high current POL converters, battery powered devices, and DC/DC converters.
