TSOP48..XG1 is a series of miniature receivers from Vishay Telefunken for infrared remote control systems with a carrier frequency of 30-56 kHz, supporting TTL and CMOS compatibility.

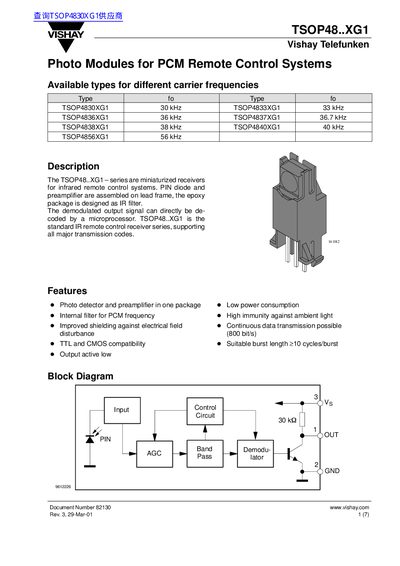

The document details the TSOP48..XG1 series, which are miniaturized receivers designed for infrared remote control systems. These modules integrate a photo detector and preamplifier in one package with an internal filter for specific PCM frequencies. They support all major transmission codes including NEC, Toshiba Micom, Sharp, RC5, RC6, and R-2000.
| Carrier Frequency Range | 30 kHz to 56 kHz |
|---|---|
| Supply Voltage Range | -0.3...6.0 V |
| Operating Temperature Range | -25...+85 °C |
| Junction Temperature Max | 100 °C |
| Output Logic Level | Active low |
The receiver supports NEC Code, Toshiba Micom Format, Sharp Code, RC5 Code, RC6 Code, and R-2000 Code.
The typical transmission distance is 35 meters when using an IR diode TSAL6200 with Ir = 250 mA.
Yes, the device features TTL and CMOS compatibility.
