Si2328DS is a new product from Vishay Siliconix, it is a N-channel 100-V (D-S) MOSFET with a maximum drain-source voltage of 100 volts and a rated on-resistance of 0.250 Ω. The operating temperature range is -55 to 150 ℃.

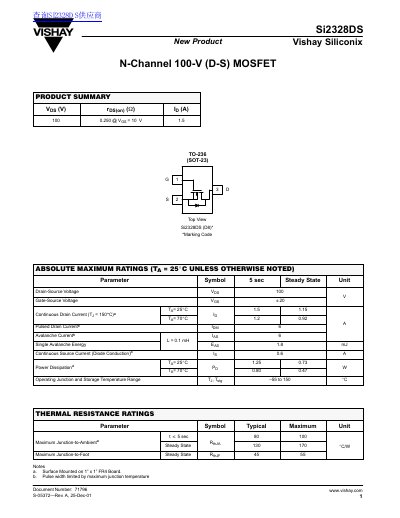

The document is a new product datasheet for the Si2328DS, an N-channel 100-V (D-S) MOSFET available in TO-236 (SOT-23) packaging. It details key electrical parameters such as drain-source breakdown voltage, continuous drain current, and on-state resistance.
| Drain-Source Voltage (VDS) | 100 V |
|---|---|
| Continuous Drain Current (ID) | 1.5 A |
| Pulsed Drain Current (IDM) | 6 A |
| Operating Junction Temperature Range | -55 to 150 C |
| Package Type | TO-236 (SOT-23) |
The maximum continuous drain current is 1.5 A when the junction temperature is 150 C.
The maximum power dissipation is 0.47 W at an ambient temperature of 70 C.
