BZW03C is a silicon Z-diode and transient voltage suppressor produced by Vishay Telefunken. It features glass passivated junction, hermetically sealed package and picosecond clamping time. It is used for voltage regulators and transient suppression circuits.

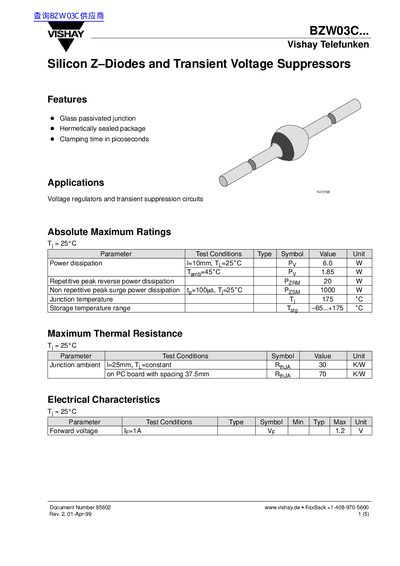

The document is a technical specification sheet for the Vishay BZW03C series of Silicon Zener Diodes and Transient Voltage Suppressors. It details features such as glass passivated junctions and hermetically sealed packages, intended for use in voltage regulators and transient suppression circuits.
Key sections include absolute maximum ratings for power dissipation and thermal resistance, electrical characteristics tables listing forward voltage and breakdown voltage parameters across various types (7V5 to 270), and graphical representations of power dissipation versus ambient temperature.
| Storage Temperature Range | -65...+175 °C |
|---|
These diodes are used in voltage regulators and transient suppression circuits.
The maximum weight of the SOD 64 package is 1.0g.
