VISHAY SD0520LS is a small signal Schottky diode with features of low forward voltage drop, ultrafast switching, etc., ideal for hard-disk drive applications.

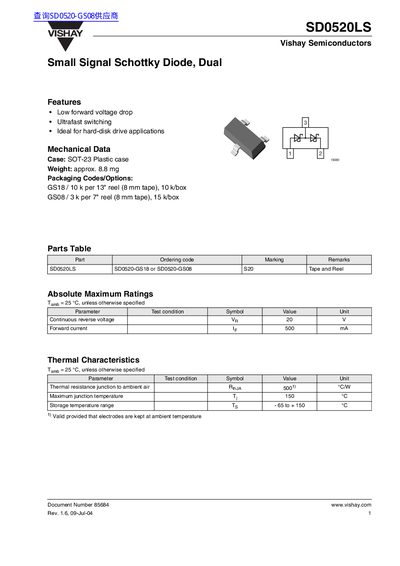

This document is a datasheet for the Vishay Semiconductors SD0520LS, which is a Small Signal Schottky Diode with dual configuration. It highlights features such as low forward voltage drop and ultrafast switching speed, making it ideal for hard-disk drive applications.
The datasheet provides comprehensive technical specifications including absolute maximum ratings, electrical characteristics like reverse breakdown voltage and leakage current, thermal resistance values, and mechanical package dimensions for the SOT-23 plastic case.
| Continuous reverse voltage | 20 V |
|---|---|
| Forward current | 500 mA |
| Maximum junction temperature | 150 °C |
The maximum continuous reverse voltage is 20 V.
The maximum forward current is 500 mA.
The maximum junction temperature is 150 °C.
