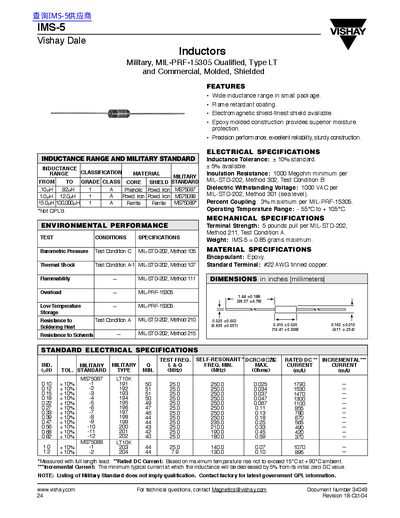

This document introduces the characteristics and features of Vishay Dale's IMS-5 inductors, including wide inductance range, flame retardant coating, electromagnetic shielding, superior moisture protection, precision performance, excellent reliability and sturdy construction.
This document provides technical specifications for the Vishay IMS-5 series of molded, shielded inductors. The product is available in both Military (MIL-PRF-15305 Qualified) and Commercial grades, featuring a wide inductance range from 1.0nH to 100,000nH. Key features include an epoxy molded construction for moisture protection and a fine electromagnetic shield.
| Operating Temperature Range | -55°C to +105°C |
|---|---|
| Insulation Resistance | 1000 Megohm minimum |
| Dielectric Withstanding Voltage | 1000 VAC |
| Percent Coupling | 3% maximum |
| Weight | 0.85 grams maximum |
| Encapsulant | Epoxy |
The standard inductance tolerance is +10%, with 5% available.
The maximum weight is 0.85 grams.
