The CNY70 is a reflective optical sensor with a compact construction. It is suitable for optoelectronic scanning and switching devices. It operates at a wavelength of 950nm and provides a high signal output with a low temperature coefficient.

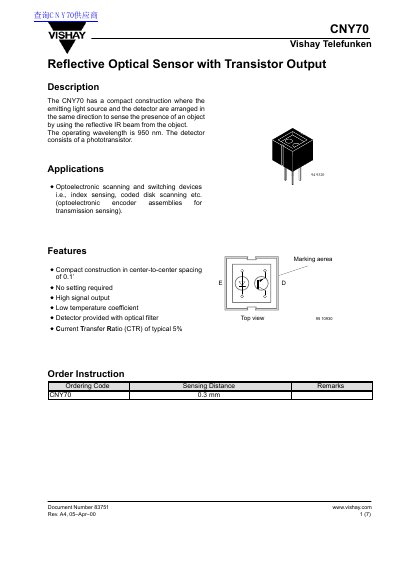

The document describes the Vishay Telefunken CNY70, a compact reflective optical sensor that uses an infrared beam at 950 nm to detect objects. The device features a phototransistor detector and is designed for use in optoelectronic scanning and switching devices such as index sensing and coded disk scanning.
| Operating Wavelength | 950 nm |
|---|---|
| Detector Type | Phototransistor |
| Reverse Voltage (VR) | 5 V |
| Forward Current (IF) | 50 mA |
| Collector Emitter Voltage (VCEO) | 32 V |
| Ambient Temperature Range | -55 to +85 °C |
It is suitable for optoelectronic scanning and switching devices, such as index sensing and coded disk scanning.
The device operates at a wavelength of 950 nm.
The absolute maximum reverse voltage for the input emitter is 5 V.
The typical sensing distance is 0.3 mm.
