This document describes the features and characteristics of the BYWB29 series fast efficient plastic rectifier, including reverse voltage range, forward current, and plastic package.

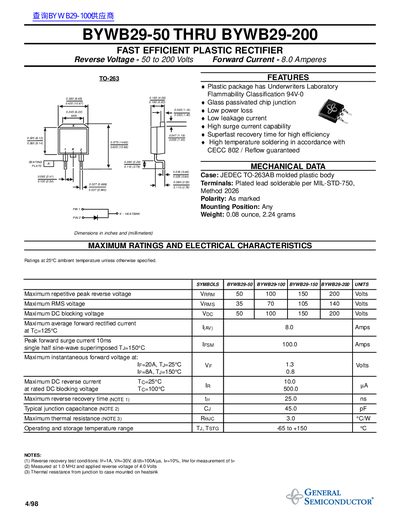

This document provides technical specifications and electrical characteristics for the General Semiconductor BYWB29-50 through BYWB29-200 series of fast efficient plastic rectifiers. The devices are housed in a JEDEC TO-263AB molded plastic body with Underwriters Laboratory Flammability Classification 94V-0.
| Operating Temperature Range | -65 to +150 °C |
|---|---|
| Package Type | JEDEC TO-263AB molded plastic body |
The device supports a maximum average forward rectified current of 8.0 Amps.
The unit operates and stores within a temperature range of -65 to +150 °C.
The maximum reverse recovery time is 25.0 ns.
