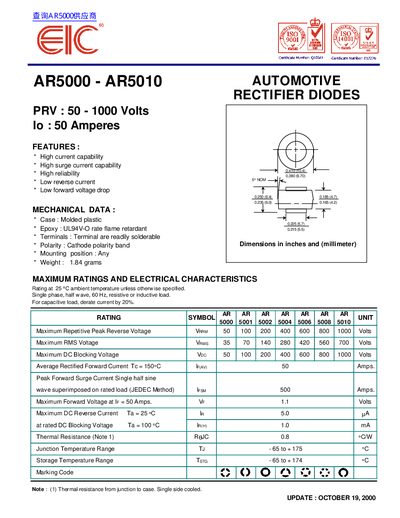

AR5000 - AR5010 automotive rectifier diodes feature high current, high surge current, high reliability, low reverse current and low forward voltage drop.
The AR5000/AR5010 series are high‑current automotive rectifier diodes featuring low reverse current, low forward voltage drop, and high surge capability. They are supplied in a molded‑plastic case with UL94V‑0 flame‑retardant epoxy and solderable terminals.
The document lists maximum repetitive peak reverse voltage up to 1000 V, RMS voltage up to 700 V, and average forward current of 50 A. Thermal resistance is 0.8 °C/W and the junction temperature range spans –65 °C to +175 °C. Mechanical data, rating curves, and update information are also included.
| Maximum Forward Voltage at 50 A | 1.4 V |
|---|---|
| Maximum DC Reverse Current at 25 °C | 5.0 µA |
| Maximum DC Reverse Current at 100 °C | 1.0 mA |
| Thermal Resistance (junction‑to‑case) | 0.8 °C/W |
| Junction Temperature Range | -65 °C to +175 °C |
| Weight | 1.84 g |
| Case Material | Molded plastic |
| Epoxy | UL94V‑0 flame‑retardant |
| Terminals | Readily solderable |
| Polarity | Cathode polarity band |
| Mounting Position | Any |
The thermal resistance (junction‑to‑case) is 0.8 °C/W.
