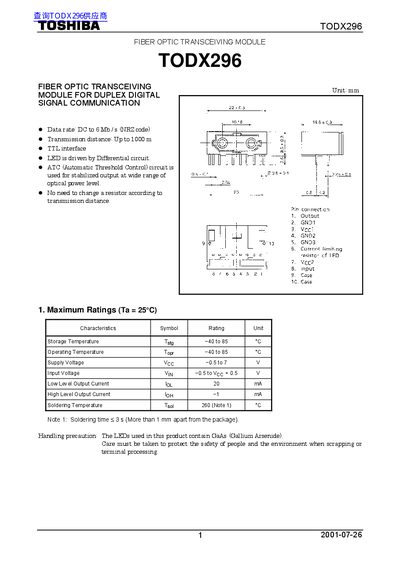

TODX296 is a fiber optic transceiving module for duplex digital signal communication. It has a data rate of DC to 6 Mb/s (NRZ code), a transmission distance of up to 1000 m, TTL interface, LED driven by a differential circuit, and uses an Automatic Threshold Control (ATC) circuit for stabilized output at a wide range of optical power levels. No resistor change is required according to the transmission distance.
This datasheet details the Toshiba TODX296 fiber optic transceiving module, designed for duplex digital signal communication. It specifies electrical ratings, optical performance, and operating conditions. The module supports data rates up to 6 Mb/s and transmission distances up to 1000 meters. It includes application circuits and precautions for handling, soldering, and environmental use. The document also covers lifetime considerations for light emitters and noise resistance guidelines.
| Data Rate | DC to 6 Mb/s (NRZ code) |
|---|---|
| Transmission Distance | Up to 1000 m |
| Supply Voltage | 4.75 to 5.25 V |
| Maximum Ratings | Storage Temperature -40 to 85°C |
| Current Consumption | 75 to 90 mA |
| Peak Emission Wavelength | 800 nm |
| Maximum Receivable Power | -14 dBm |
| Minimum Receivable Power | -31 dBm |
The module supports a data rate of DC to 6 Mb/s using NRZ code.
The module can transmit up to 1000 meters using PCF.
The recommended supply voltage is 4.75 to 5.25 V.
The peak emission wavelength is 800 nm.
