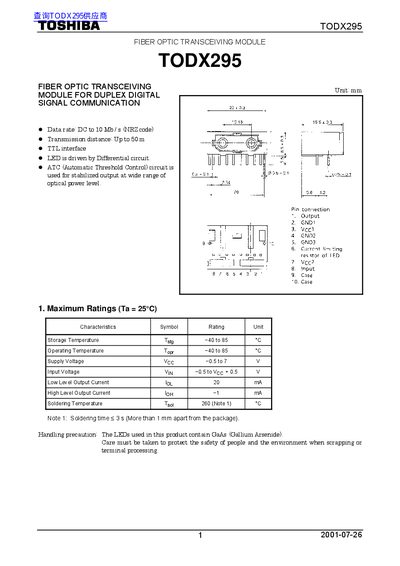

The document describes the features and characteristics of the TODX295 fiber optic transceiving module for duplex digital signal communication, including data rate, transmission distance, TTL interface, differential circuit for LED driving, and ATC circuit for stabilized output.
This datasheet provides technical specifications for the Toshiba TODX295 fiber optic transceiving module, including data rate, transmission distance, and electrical characteristics. It also covers application circuits, optical fiber compatibility, and precautions for use, such as handling, soldering, and environmental considerations. The module is designed for duplex digital signal communication with TTL interface support.
| Data Rate | DC to 10 Mb/s (NRZ code) |
|---|---|
| Transmission Distance | Up to 50m |
| Supply Voltage | 4.75 to 5.25 V |
| Operating Temperature | -40 to 85 °C |
| Current Consumption | 60 to 95 mA |
Up to 50 meters using APF and TODX295.
DC to 10 Mb/s using NRZ code.
From -40°C to 85°C.
4.75 to 5.25 V.
