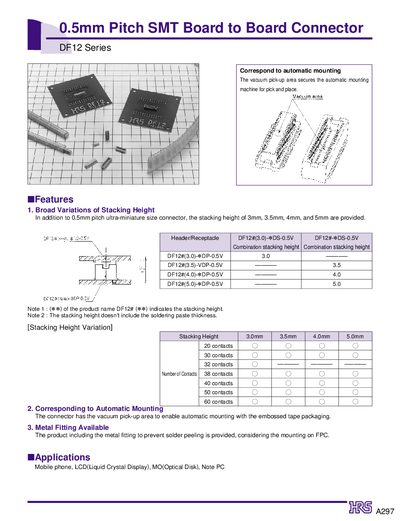

This document describes the features and characteristics of the A297 0.5mm Pitch SMT Board to Board Connector DF12 Series, including various stacking height options, compatibility with automatic mounting, and provision of metal fittings to prevent solder peeling.
The DF12 series from HRS offers ultra‑miniature 0.5 mm pitch SMT board‑to‑board connectors with selectable stacking heights of 3.0 mm, 3.5 mm, 4.0 mm and 5.0 mm. The connectors are suited for mobile phones, LCDs, optical disks and notebook PCs and feature a vacuum pick‑up area for automatic mounting.
The handbook details electrical specifications (rated current 0.3 A, rated voltage 50 V AC, operating temperature –45 °C to +125 °C), material construction (polyamide insulator, phosphor‑copper contacts with gold plating), packaging (embossed tape, 1000 pcs/reel) and recommended soldering profiles (290 °C ± 10 °C, ≤2 s). It also includes ordering information, PCB footprint recommendations, and safety precautions for handling the contacts.
| Rated Current | 0.3 A |
|---|---|
| Rated Voltage | 50 V AC |
| Operating Temperature Range | -45 °C to +125 °C |
| Storage Temperature Range | -10 °C to +60 °C |
| Insulation Resistance | ≥5000 MΩ at 100 V DC |
| Contact Resistance | ≤50 mΩ at 100 mA |
| Insulator Material | Polyamide Beige UL94‑VO0 |
The DF12 series offers stacking heights of 3.0 mm, 3.5 mm, 4.0 mm and 5.0 mm.
Use a soldering iron set to 290 °C ± 10 °C and keep the soldering time within about 2 seconds.
The connector is rated for a continuous current of 0.3 A.
It is supplied in embossed tape packaging, 1000 pieces per reel, with a vacuum pick‑up area for pick‑and‑place machines.
