CAT.8100V U 1 S 2 F 3 1 4 A 5 3 6 3 7 0 8 M 9 D 10 D 11 is an aluminum electrolytic capacitor belonging to the SF series. It has low impedance, suitable for a wide temperature range of -55~+105˚C, and a height of 7mm. It complies with the RoHS directive (2002/95/EC).
This document provides technical data for the Nichicon SF Series of 7mm height aluminum electrolytic capacitors. These components are designed with low impedance over a wide temperature range from -55 to +105°C and comply with the RoHS directive.

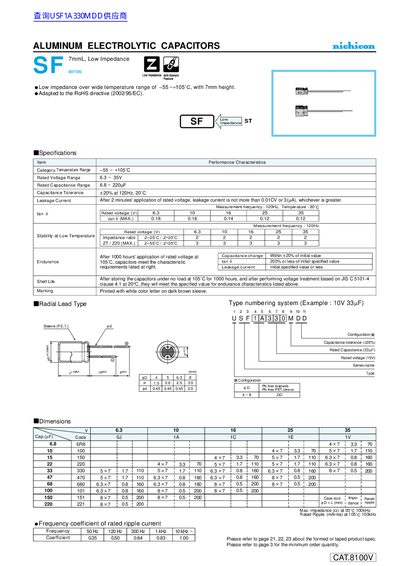

The datasheet details performance characteristics including capacitance tolerance, leakage current limits, dissipation factor (tan δ), stability at low temperatures, and endurance ratings after 1000 hours of application. It also includes a configuration guide for marking codes and a table of dimensions based on rated voltage and capacitance values.
| Temperature Range | -55 ~ +105°C |
|---|---|
| Rated Voltage Range | 6.3 ~ 35V |
| Rated Capacitance Range | 6.8 ~ 220uF |
| Capacitance Tolerance | +20% |
| Leakage Current Limit | 0.01CV or 3uA, whichever is greater |
The SF Series capacitors have a height of 7mm.
Yes, they are adapted to the RoHS directive (2002/95/EC).
The maximum tan δ is 0.18 for a rated voltage of 6.3V.
