HV series aluminum electrolytic capacitors, rated voltage is 6.3 to 35V, rated capacitance is 47 to 8200μF, compatible with RoHS directive (2002/95/EC)

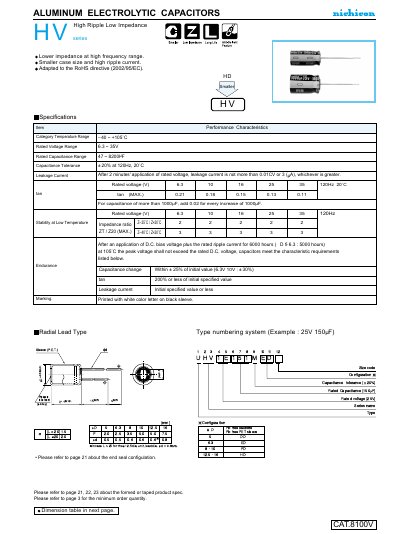

The HV series from Nichicon offers high ripple current, low impedance at high frequencies, and a smaller case size while complying with the RoHS directive (2002/95/EC). It is approved by the Reliability Center for Electronic Component, Japan (RCJ‑03‑23C).\n\nThe document lists detailed electrical characteristics such as rated voltage range (6.3 ~ 35 V), capacitance range (47 ~ 8200 µF), tolerance (±20% at 120 Hz, 20 °C), leakage current limits, temperature operating range (‑40 °C to +105 °C), impedance values, and dimensional data for each size code.
| Temperature Range | -40 °C to +105 °C |
|---|---|
| Capacitance Range | 47 ~ 8200 µF |
| Capacitance Tolerance | ±20% at 120 Hz, 20 °C |
| Leakage Current | ≤ 0.01 CV or 3 µA (whichever is greater) |
The HV series capacitors operate from –40 °C to +105 °C.
Yes, they are adapted to the RoHS directive (2002/95/EC).
After 2 minutes of rated voltage, leakage current is not more than 0.01 CV or 3 µA, whichever is greater.
The capacitance tolerance is ±20% at 120 Hz, 20 °C.
