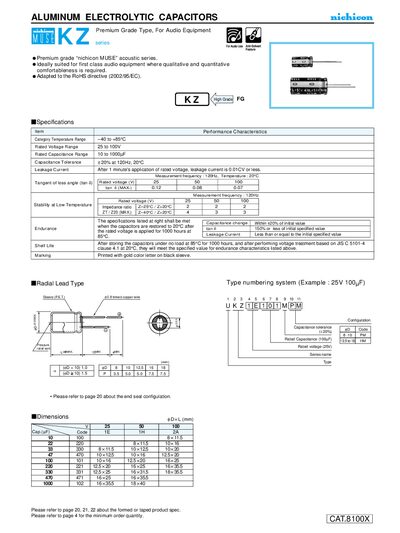

Nichicon MUSE KZ Series aluminum electrolytic capacitors specification sheet with ratings, dimensions, performance data and RoHS compliance.
The MUSE KZ Series from Nichicon is a premium‑grade aluminum electrolytic capacitor line aimed at high‑quality audio equipment. The sheet lists the series name, configuration, and typical applications, emphasizing its acoustic performance and RoHS compliance.
Key specifications include rated voltage up to 100 V, capacitance from 10 µF to 1000 µF with ±20 % tolerance, operating temperature from –40 °C to +85 °C, and leakage current limited to 0.01 CV after one minute. Dimensional data and impedance ratios are also provided for design reference.
| Rated Voltage | 25 V (up to 100 V range) |
|---|---|
| Capacitance Range | 10 µF – 1000 µF |
| Capacitance Tolerance | ±20 % |
| Operating Temperature | –40 °C to +85 °C |
| Leakage Current | ≤ 0.01 CV after 1 min |
| Impedance Ratio (ZT/Z20) Max | 25 |
Yes, they are adapted to the RoHS directive (2002/95/EC).
After one minute of applying the rated voltage, the leakage current is 0.01 CV or less.
They operate from –40 °C to +85 °C.
