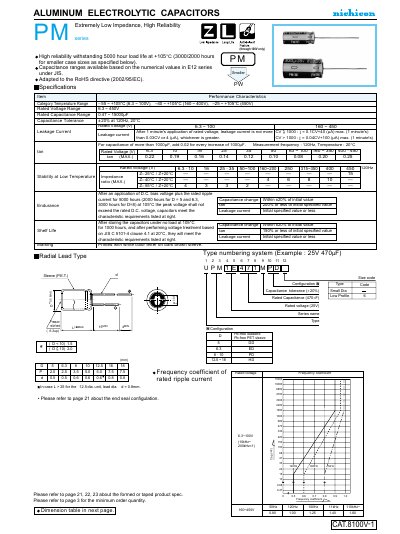

The document describes an aluminum electrolytic capacitor product with extremely low impedance and high reliability. The product is suitable for operating temperatures up to +105°C and can withstand a 5000-hour load life test (3000/2000 hours for smaller case sizes). The product is compliant with the RoHS directive (2002/95/EC).
The PM series offers aluminum electrolytic capacitors ranging from 0.47 µF to 15000 µF with a ±20 % tolerance. The series is designed for high reliability, meeting RoHS requirements and supporting rated voltages from 6.3 V up to 100 V (higher voltages for larger case sizes).\n\nTechnical data include temperature operating limits of –55 °C to +105 °C, detailed impedance and ripple current specifications, leakage‑current formulas, and dimensional tables for various case sizes. The document also outlines marking conventions and shelf‑life testing procedures.
| Rated Voltage Range | 6.3 V – 100 V |
|---|---|
| Capacitance Range | 0.47 µF – 15000 µF ±20 % at 120 Hz, 20 °C |
| Temperature Operating Range | -55 °C to +105 °C |
| Leakage Current (≤1000 µF) | I = 0.1 C·V + 40 µA (max after 1 min) |
The PM series capacitors are rated for voltages from 6.3 V up to 100 V.
They can operate from –55 °C to +105 °C.
For capacitors ≤1000 µF, leakage current is limited to I = 0.1 C·V + 40 µA (whichever is greater).
