The document describes an electrolytic capacitor with high capacitance, low ESR, and high ripple current characteristics. It complies with the RoHS directive and has a operating temperature range of -55 to +105°C, voltage range of 2.5 to 16V, and capacitance range of 47 to 3300µF. After 2000 hours of application at 105°C, the capacitor meets the specified values for life characteristics. After 1000 hours of application at 60°C 90%RH, the capacitor also meets the specified values for life characteristics. Recommended conditions for reflow soldering include pre-heating at 150 to 200°C for 60 to 180 seconds. Reflow soldering should be done within two times if the peak temperature is below 250°C, and once if the peak temperature is below 260°C.

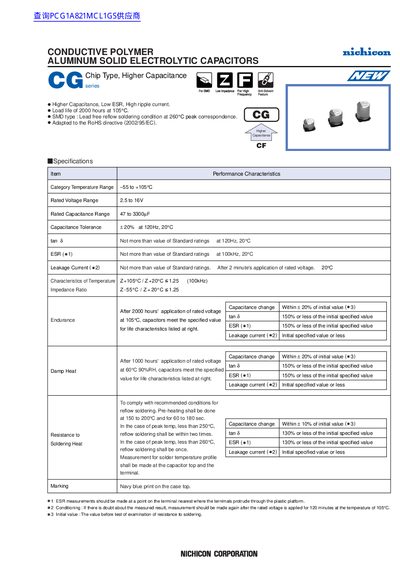

This document presents the performance characteristics and specifications of Nichicon's CG series conductive polymer aluminum solid electrolytic capacitors. It includes temperature range, rated voltage and capacitance ranges, tolerance, ESR, leakage current, and impedance ratios.
Additional information covers recommended soldering conditions, marking details, and a detailed table of dimensions and part numbers for various capacitance and voltage ratings. The data is intended for designers and engineers selecting capacitors for electronic circuits.
| Temperature Range | -55°C to +105°C |
|---|---|
| Rated Voltage Range | 2.5 V to 16 V |
| Rated Capacitance Range | 47 µF to 3300 µF |
| Capacitance Tolerance | +20 % at 120 Hz, 20 °C |
| Load Life at 105 °C | 2000 hours |
| Recommended Reflow Soldering Peak Temperature | Less than 260 °C (single reflow) |
They operate from –55 °C up to +105 °C.
The rated voltage range is 2.5 V to 16 V.
They have a load life of 2000 hours at 105 °C.
Peak reflow temperature should be below 260 °C, with a single reflow pass.
