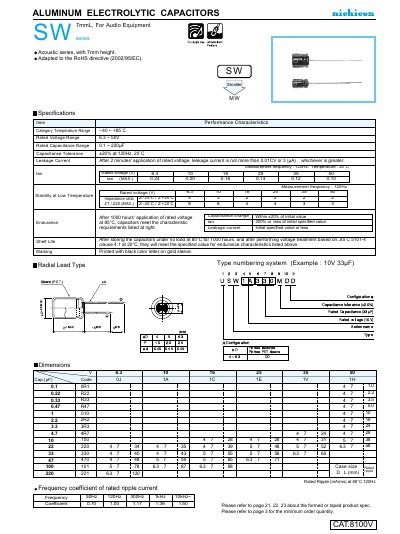

CAT.8100V is an aluminum electrolytic capacitor suitable for audio equipment. It has a height of 7mm and complies with the RoHS directive. The capacitor has a temperature range of -40°C to +85°C, a rated voltage range of 6.3V to 50V, a rated capacitance range of 0.1µF to 220µF, and a capacitance tolerance of ±20%. After 1000 hours of application of rated voltage at 85°C, the capacitors meet the characteristic requirements.
The SW series from KEMET offers radial‑lead aluminum electrolytic capacitors with a 7 mm case height, designed for audio and acoustic applications. The series complies with the RoHS directive and includes a wide range of capacitance values.
Key performance data such as temperature range, rated voltage, capacitance tolerance, leakage current and tan δ are listed, along with dimensions and rated ripple current for various voltage grades.
| Capacitance Range | 0.1 µF to 220 µF |
|---|---|
| Capacitance Tolerance | ±20 % at 120 Hz, 20 °C |
| Leakage Current | ≤ 0.01 CV or 3 µA, whichever is greater |
Capacitance values range from 0.1 µF to 220 µF.
Leakage current must not exceed 0.01 CV or 3 µA, whichever is greater.
