This is a catalog of solid tantalum electrolytic capacitors, including models, rated voltage, rated capacitance, and external dimensions.

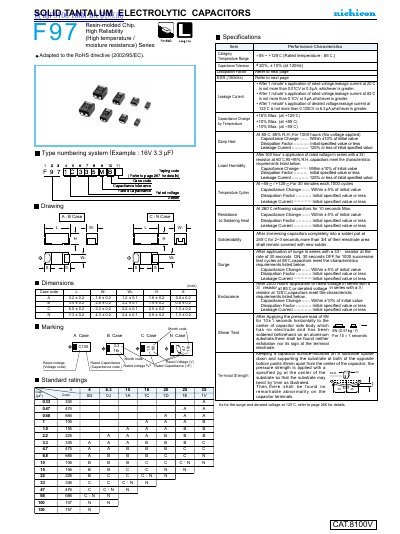

This product leaflet details the CAT.8100V5N solid tantalum electrolytic capacitors from Nichicon, including standard ratings, dimensions, and performance characteristics. It covers leakage current, capacitance tolerance, temperature range, and reliability tests such as damp heat, temperature cycles, and soldering heat resistance. The document also lists specific part numbers with rated voltage, capacitance, ESR, and dissipation factor values for various case codes. This manual is written in Chinese.
| Leakage Current | Not more than 0.01CV or 0.5 µA at 20°C |
|---|---|
| Dissipation Factor | Initial specified value or less |
Leakage current at 20°C is not more than 0.01CV or 0.5 µA, whichever is greater.
