This document details the features and characteristics of HC series aluminum electrolytic capacitors, including rated voltage range, rated capacitance range, capacitance tolerance, leakage current, tan δ, low temperature stability, endurance, etc.

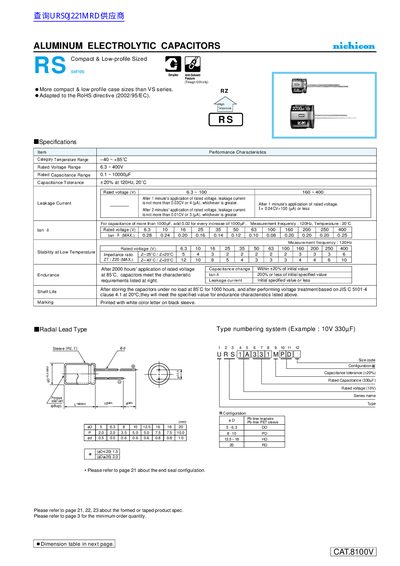

This document provides an overview of Nichicon's compact and low-profile aluminum electrolytic capacitors. The series is designed to be more compact than the VS series and complies with the RoHS directive (2002/95/EC). It features a radial lead type construction with white lettering on a black sleeve.
| Temperature Range | -40 to +85 C |
|---|---|
| Rated Voltage Range | 6.3~400V |
| Capacitance Tolerance | 20% at 120Hz, 20C |
| Leakage Current Limit (After 1 min) | 0.03CV or 4uA |
The specified category temperature range is -40 to +85 degrees Celsius.
