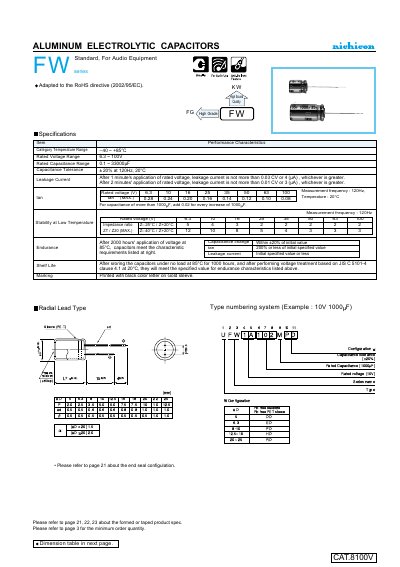

CAT.8100V ALUMINUM ELECTROLYTIC CAPACITORS FW series Standard, For Audio Equipment Radial Lead Type
The FW series aluminum electrolytic capacitors are designed for audio equipment and feature a radial lead type. The document provides detailed specifications, performance characteristics, and dimensional data for the product range.
Key specifications include temperature range, rated voltage and capacitance ranges, tolerance, leakage current, tan δ, and ripple current performance. Marking conventions and compliance with RoHS are also described. This manual is written in Chinese.
| Rated Voltage Range | 6.3 ~ 100 V |
|---|---|
| Rated Capacitance Range | 0.1 ~ 33 000 µF |
| Capacitance Tolerance | ±20 % at 120 Hz, 20 °C |
| Leakage Current (1 min) | ≤ 0.03 CV or 4 µA, whichever is greater |
| Leakage Current (2 min) | ≤ 0.01 CV or 3 µA, whichever is greater |
| RoHS Compliance | Adapted to the RoHS directive (2002/95/EC) |
They are available with rated voltages from 6.3 V up to 100 V.
Capacitance tolerance is ±20 % measured at 120 Hz and 20 °C.
