Vishay Telefunken TSAL7300 Infrared Emitting Diode Datasheet

TSAL7300 Vishay Telefunken is a high efficiency infrared emitting diode in GaAlAs on GaAs technology, molded in clear, plastic packages.

Brand: Vishay
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 84 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: 909E04469D98A3C0BD2825D76611CA7A
PDF: Vishay Telefunken TSAL7300 Infrared Emitting Diode Datasheet PDF

About this manual

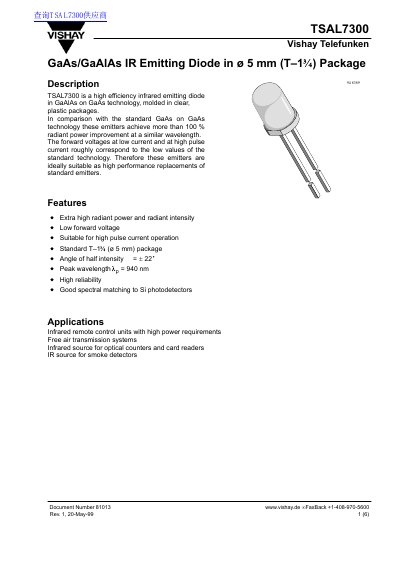

The TSAL7300 is a high efficiency infrared emitting diode based on GaAlAs technology in a clear plastic ø 5 mm (T–1 /C0190) package. It offers more than 100 % radiant power improvement at a similar wavelength compared to standard GaAs on GaAs technology and features low forward voltage suitable for high pulse current operation.

What's inside

Description
Features
Applications
Absolute Maximum Ratings
Basic Characteristics
Typical Characteristics
Dimensions

Specifications

Angle of Half Intensity	± 22 deg
Forward Current (IF)	100 mA
Operating Temperature Range	-55...+100 C

Frequently asked questions

What is the package type for the TSAL7300?

The device uses a standard T–1 /C0190 (ø 5 mm) plastic package.

Is the TSAL7300 suitable for high pulse current operation?

Yes, its low forward voltage makes it ideally suitable as a high performance replacement for standard emitters in such applications.

What is the typical radiant intensity at 100 mA?

The typical radiant intensity is between 30 and 45 mW/sr when the forward current is 100 mA.
