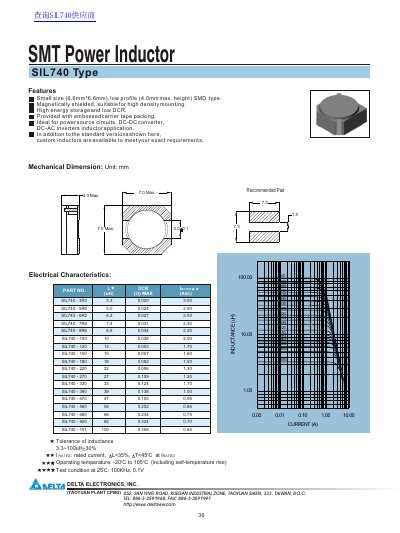

Delta Electronics SIL740 SMT Power Inductor Datasheet

This datasheet lists the specifications of the SIL740 type inductors, including rated current, rated inductance and impedance.

Brand: Delta
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 335 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: 949928033D8D74E57F2A5A375203370C
PDF: Delta Electronics SIL740 SMT Power Inductor Datasheet PDF

About this manual

This document is a datasheet for the Delta Electronics SIL740 series of Surface Mount Technology (SMT) power inductors. The components are designed with a small 6.6mm x 6.6mm footprint and a maximum height of 4.0mm, featuring a magnetically shielded design to support high-density mounting applications.

What's inside

Electrical Characteristics
Mechanical Dimension
Features

Specifications

Inductance Range	3.3~100uH
Rated Current Tolerance	+/- 30%
Operating Temperature Range	-20 to 105 C
DCR Test Condition	100KHz, 0.1V
Package Type	Embossed carrier tape packing

Frequently asked questions

What is the maximum operating temperature for the SIL740 inductor?

The device operates from -20 to 105 degrees Celsius, including self-temperature rise.

What is the maximum height of the SIL740 inductor?

The low profile design has a maximum height of 4.0 mm.
