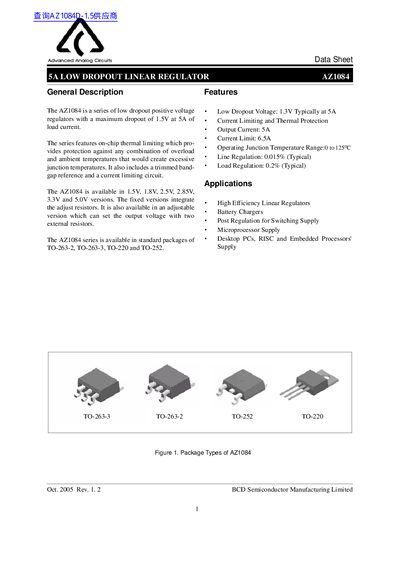

AZ1084 is a series of 5A low dropout positive voltage regulators with a maximum dropout of 1.5V at 5A of load current, from BCD Semiconductor Manufacturing Limited. The series features on-chip thermal limiting which pro- vides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. It also includes a trimmed band- gap reference and a current limiting circuit. The AZ1084 is available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V versions. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors. The AZ1084 series is available in standard packages of TO-263-2, TO-263-3, TO-220 and TO-252.
The AZ1084 is a series of low dropout positive voltage regulators featuring on-chip thermal limiting and a trimmed band-gap reference. It offers fixed output voltages ranging from 1.5V to 5.0V, as well as an adjustable version capable of setting the output with external resistors.
The device is available in standard packages including TO-263-2, TO-263-3, TO-220, and TO-252. Key features include a typical dropout voltage of 1.3V at 5A, current limiting up to 6.5A, and an operating junction temperature range of 0°C to 125°C.
| Output Current | 5A |
|---|---|
| Current Limit | 6.5A |
| Operating Junction Temperature Range | 0 to 125°C |
| Line Regulation (Typical) | 0.015% |
| Load Regulation (Typical) | 0.2% |
| Dropout Voltage (Typical at 5A) | 1.3V |
The regulator provides a maximum output current of 5A.
The maximum dropout voltage is 1.5V when delivering 5A of load current.
Fixed versions are available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V.
