This is a 200mw surface mount zener diode with planar die construction, ultra-small surface mount package, general purpose and other features

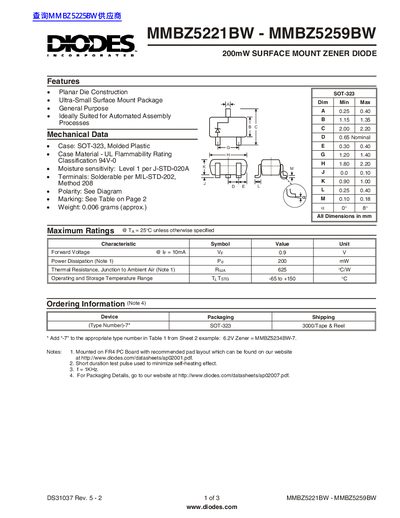

This document is a technical datasheet for Diodes Incorporated's general-purpose, ultra-small surface-mount zener diodes. The devices feature planar die construction and are available in the SOT-323 molded plastic package with UL 94V-0 flammability rating.
The datasheet provides electrical characteristics for models ranging from MMBZ5221BW (2.4V) to MMBZ5259BW (39V). It includes mechanical data, maximum ratings such as a power dissipation of 200mW, and detailed tables for zener voltage ranges, impedance, and leakage current.
| Power Dissipation | 200 mW |
|---|---|
| Thermal Resistance, Junction to Ambient Air | 625 °C/W |
| Operating and Storage Temperature Range | -65 to +150 °C |
| Package Type | SOT-323 |
The maximum power dissipation for this series is 200 mW.
The case material has a UL Flammability Rating Classification of 94V-0.
