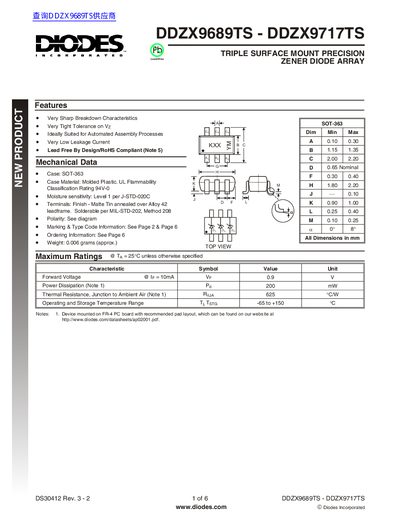

This document describes the features and characteristics of the Pb Lead-free DS30412 Rev. 3 - 2 1 of 6 DDZX9689TS - DDZX9717TS products, including very sharp breakdown characteristics, very tight tolerance on VZ, ideally suited for automated assembly processes, very low leakage current, and lead-free design/RoHS compliant.
The document describes a new product line of Triple Surface Mount Precision Zener Diode Arrays from Diodes Incorporated. These devices feature very sharp breakdown characteristics and tight tolerance on the Zener voltage (Vz). They are designed for automated assembly processes and are lead-free by design, complying with RoHS standards.
| Case Package | SOT-363 |
|---|---|
| Power Dissipation | 200 mW |
| Operating Temperature Range | -65 to +150 °C |
| Moisture Sensitivity Level | Level 1 |
Yes, the device is lead-free by design and RoHS Compliant.
The case is made of molded plastic with a UL Flammability Classification Rating 94V-0.
The approximate weight of the device is 0.006 grams.
