This document describes the features and characteristics of the 1N5711WS surface mount Schottky barrier diode, including low forward voltage drop, guard ring construction for transient protection, fast switching speed, and low capacitance.

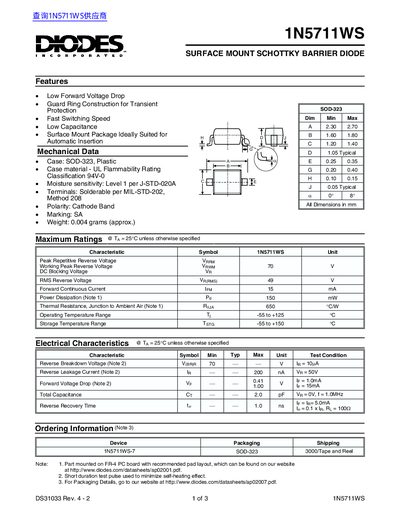

This document is a technical datasheet for the Diodes Incorporated 1N5711WS Surface Mount Schottky Barrier Diode. It provides key features such as low forward voltage drop, guard ring construction for transient protection, fast switching speed, and low capacitance.
The datasheet includes mechanical data specifying an SOD-323 plastic case with UL Flammability Rating Classification 94V-0. It details maximum ratings including a peak repetitive reverse voltage of 70 V and a forward continuous current of 15 mA, along with electrical characteristics like reverse breakdown voltage and total capacitance.
| Case Type | SOD-323, Plastic |
|---|---|
| Forward Continuous Current | 15 mA |
| Power Dissipation | 150 mW |
| Operating Temperature Range | -55 to +125 °C |
| Reverse Breakdown Voltage | 70 V |
The device supports a forward continuous current of up to 15 mA.
The diode operates within a temperature range from -55 to +125 °C.
