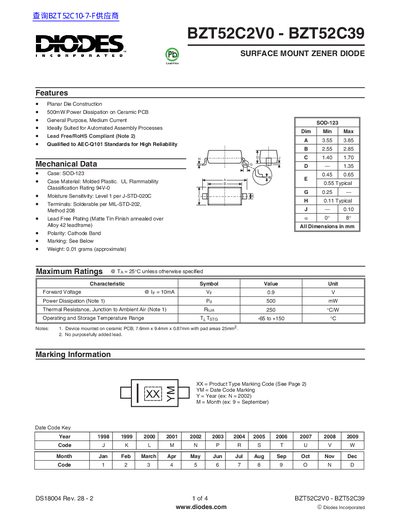

This document is a datasheet for BZT52C2V0-BZT52C39, introduces the product features and characteristics.
The document provides a comprehensive technical overview of the Diodes Incorporated BZT52C2V0 through BZT52C39 series of Zener diodes. These components are designed as general-purpose, medium current devices with a power dissipation of 500mW when mounted on a ceramic PCB. They feature lead-free plating and are qualified to AEC-Q101 standards for high reliability in automated assembly processes.
| Power Dissipation | 500 mW |
|---|---|
| Thermal Resistance, Junction to Ambient Air | 250 /c176C/W |
| Operating and Storage Temperature Range | -65 to +150 /c176C |
| Case Type | SOD-123 |
| Moisture Sensitivity Level | Level 1 per J-STD-020C |
The device has a maximum power dissipation of 500 mW when mounted on a ceramic PCB.
The approximate weight of each surface mount zener diode is 0.01 grams.
