This document describes the features and characteristics of the BZX84C2V4TS-BZX84C39TS triple surface mount zener diode array, including zener voltage range, package form, and environmental compliance.

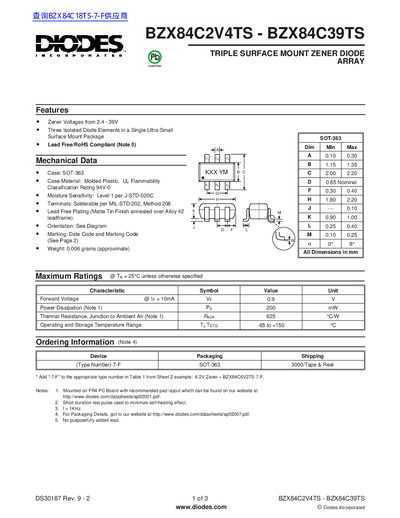

This document is a datasheet for the Diodes Incorporated BZX84C2V4TS to BZX84C39TS Triple Surface Mount Zener Diode Array. The device features three isolated diode elements in a single ultra-small SOT-363 surface mount package and is lead-free and RoHS compliant.
The datasheet provides detailed electrical characteristics for various Zener voltage options ranging from 2.4V to 39V, including Zener voltage, impedance, maximum reverse current, and temperature coefficients. It also includes mechanical data, maximum ratings, ordering information, and marking details.
| Package Type | SOT-363 |
|---|---|
| Zener Voltage Range | 2.4 - 39V |
| Power Dissipation | 200 mW |
| Operating Temperature Range | -65 to +150 °C |
| Moisture Sensitivity Level | Level 1 |
The device uses a single ultra-small surface mount package known as SOT-363.
Yes, the product is lead-free and RoHS compliant.
The maximum power dissipation is 200 mW.
