This datasheet lists detailed specifications of the BAS70W/ -04/ -05/ -06 Schottky barrier diodes, including package, pins, dimensions, electrical parameters, etc.

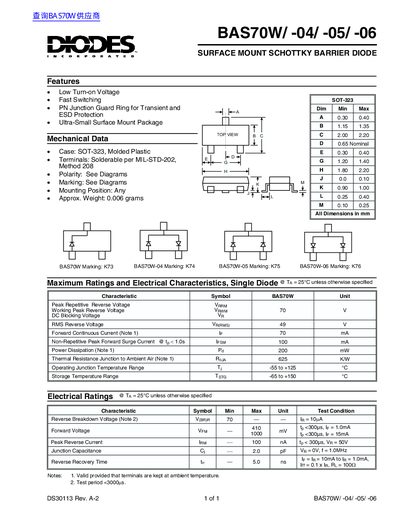

This document is a datasheet for the BAS70W/-04/-05/-06 Surface Mount Schottky Barrier Diode manufactured by Diodes Incorporated. It highlights key features such as low turn-on voltage, fast switching capabilities in an SOT-323 package, and ESD protection provided by a PN junction guard ring.
The document provides detailed mechanical data for the molded plastic case and solderable terminals compliant with MIL-STD-202. It also lists maximum ratings including peak repetitive reverse voltage of 70V and forward continuous current of 70mA.
| Peak Repetitive Reverse Voltage (VRRM) | 70 V |
|---|---|
| Forward Continuous Current (IF) | 70 mA |
| Power Dissipation (Pd) | 200 mW |
| Operating Junction Temperature Range (Tj) | -55 to +125 °C |
| Package Type | SOT-323 |
The device uses an ultra-small surface mount SOT-323 molded plastic package.
The maximum forward continuous current (IF) is 70 mA.
