BC807-16/ -25/ -40 PNP SURFACE MOUNT TRANSISTOR is an ideally suited for automatic insertion PNP surface mount transistor with epitaxial planar die construction, for switching, AF driver and amplifier applications. The transistor has complementary NPN types available (BC817), is lead free/RoHS compliant and qualified to AEC-Q101 standards for high reliability.

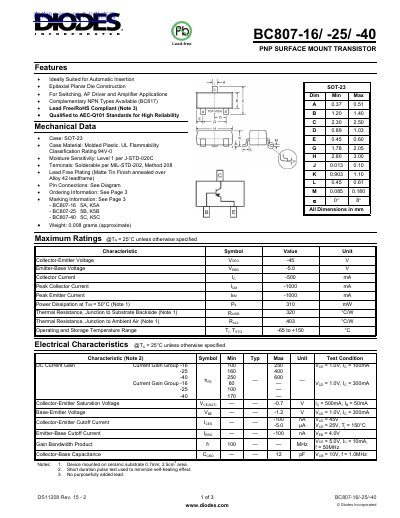

The document is a datasheet for the BC807-16/-25/-40 PNP surface mount transistor manufactured by Diodes Incorporated. It details the device's suitability for switching, AF driver, and amplifier applications, noting its lead-free and RoHS compliant status. The transistor is housed in an SOT-23 case with a molded plastic body and UL 94V-0 flammability rating.
The datasheet includes mechanical dimensions for the SOT-23 package, maximum ratings such as a collector-emitter voltage of -45V and power dissipation of 310mW, and electrical characteristics including DC current gain and cutoff currents. It also features graphs illustrating power derating, gain-bandwidth product, and typical emitter-collector characteristics.
| Operating Temperature Range | -65 to +150 °C |
|---|---|
| Case Type | SOT-23 |
| Moisture Sensitivity Level | Level 1 |
Yes, the device is lead-free and RoHS compliant.
It is ideally suited for switching, AF driver, and amplifier applications.
