STPR805DB-STPR820DB are 8.0A super-fast glass passivated rectifiers with glass passivated die construction, diffused junction, high efficiency super-fast switching, high current capability and low forward voltage drop, surge overload rating to 100A peak and low reverse leakage current.

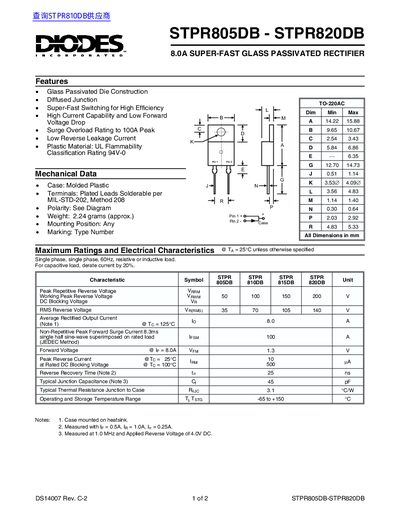

This document provides technical specifications for the STPR805DB through STPR820DB series of diodes manufactured by Diodes Incorporated. These components are described as 8.0A Super-Fast Glass Passivated Rectifiers designed for high efficiency applications.
The datasheet outlines key features including a diffused junction construction, low forward voltage drop, and surge overload ratings up to 100A peak. It also details mechanical data such as the molded plastic case with UL Flammability Rating 94V-0 and solderable plated leads.
| Non-Repetitive Peak Forward Surge Current | 100 A |
|---|---|
| Reverse Recovery Time | 25 ns |
| Case Material Rating | UL Flammability 94V-0 |
The device can handle an average rectified output current of 8.0 A when mounted on a heatsink.
The diode supports a non-repetitive peak forward surge current of 100 A for a single half sine-wave.
Each unit weighs approximately 2.24 grams.
