The BZT52C2V4-BZT52C39 is a general purpose, medium current, 500mW power dissipation, planar die construction Zener diode ideally suited for automated assembly processes.

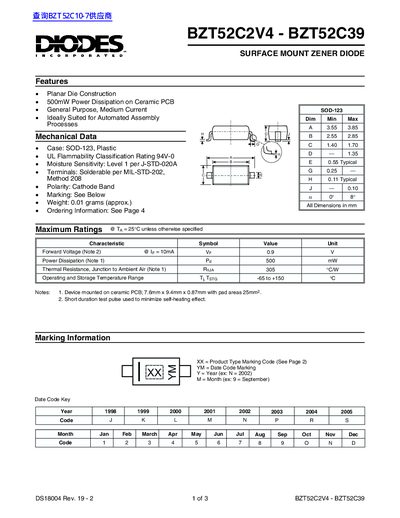

This datasheet covers the BZT52C2V4 through BZT52C39 series of surface mount zener diodes manufactured by Diodes Incorporated. The document provides general purpose, medium current specifications ideally suited for automated assembly processes, featuring a planar die construction.
| Power Dissipation | 500 mW |
|---|---|
| Operating and Storage Temperature Range | -65 to +150 °C |
| Case | SOD-123, Plastic |
| UL Flammability Classification Rating | 94V-0 |
| Moisture Sensitivity | Level 1 per J-STD-020A |
The zener voltage range is 2.2V to 2.6V.
The maximum reverse current is 0.5 mA.
The typical temperature coefficient is 0 mV/°C.
