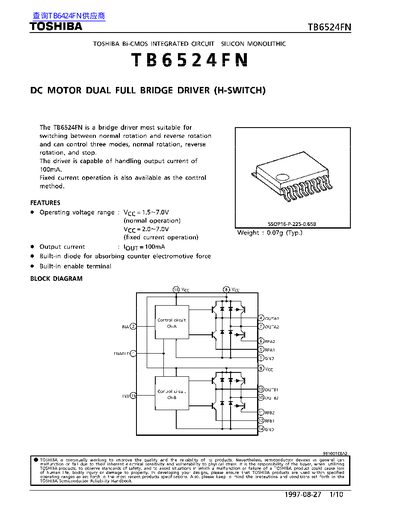

The TOSHIBA TB6524FN is an integrated circuit designed as a bridge driver suitable for switching between normal and reverse rotation of DC motors. It supports three control modes: normal rotation, reverse rotation, and stop. The device can handle an output current of 100mA and features fixed current operation capabilities.
| Operating voltage range (normal) | 1.5~7.0V |
|---|---|
| Output current | 100mA |
| Power Supply Voltage (Max) | 8 V |
| Operating Temperature | -30~75 °C |
| Package type | SSOP 16-P-225-0.65B |
The driver can control three modes: normal rotation, reverse rotation, and stop.
Yes, it has a built-in diode for absorbing counter electromotive force.
