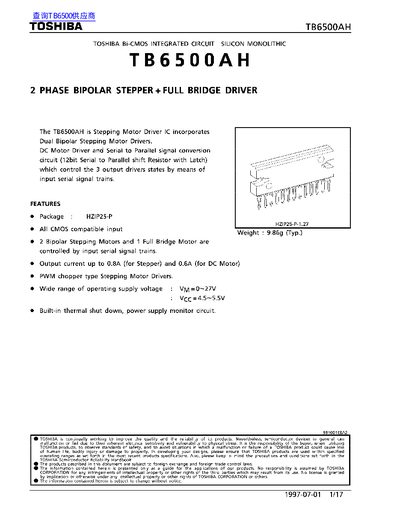

The Toshiba TB6500AH is an integrated circuit designed to drive two Bipolar Stepping Motors and one Full Bridge Motor. It incorporates dual bipolar stepping motor drivers along with a DC motor driver and a 12-bit serial-to-parallel signal conversion circuit featuring a latch.
This document provides detailed specifications, including maximum ratings for supply voltages up to 30V (motor) and 7.0V (control), output currents of 0.8A for stepper motors and 0.6A for DC motors, and operating temperatures from -40°C to +85°C. It includes block diagrams, pin function descriptions, electrical characteristics tables, recommended operating conditions, and application circuit examples.
| Package Type | HZIP25-P |
|---|---|
| Output Current (Stepper) | 0.8A |
| Output Current (DC Motor) | 0.6A |
| Operating Temperature Range | -40~85 °C |
| PWM Oscillation Frequency Max | 100 kHz |
It controls two Bipolar Stepping Motors and one Full Bridge Motor.
The typical weight is 9.869 grams.
