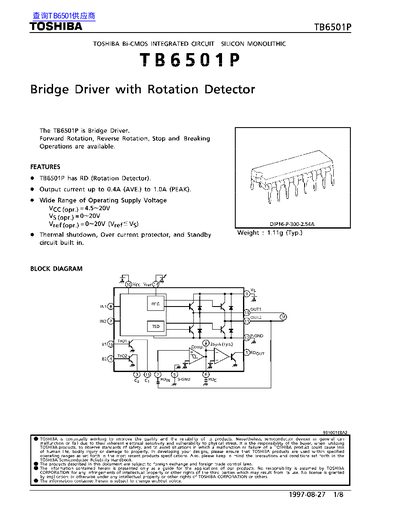

The Toshiba TB6501P is an integrated circuit designed as a bridge driver featuring a built-in rotation detector. It supports forward and reverse rotation, stop, and braking operations for motors.
Key features include output currents up to 1.0A peak, operation within a wide supply voltage range of 4V to 20V, and internal protection circuits such as thermal shutdown and over-current protection.
| Output Current (Peak) | 1.0 A |
|---|---|
| Operating Supply Voltage Vcc | 4-5~20V |
| Motor Drive Voltage Vs | 9~20V |
| Operating Temperature | -30~75 °C |
| Power Dissipation | 1.2 W |
Forward rotation, reverse rotation, stop, and breaking operations are available.
Yes, it has an RD (Rotation Detector) built-in.
