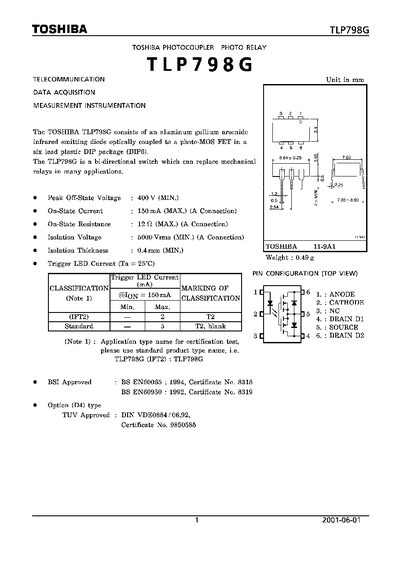

The document describes the Toshiba TLP798G, a bi-directional switch utilizing an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOS FET. It is designed in a six-lead plastic DIP package (DIP6) to replace mechanical relays in various applications.
| Peak Off-State Voltage | 400 V (MIN.) |
|---|---|
| On-State Current (A Connection) | 150mA (MAX.) |
| Isolation Voltage | 5000 Vrms (MIN.) |
| Forward Current | 30 mA |
| Operating Temperature Range | -40~85 °C |
The maximum on-state current for connection A is 150mA.
The device has a minimum isolation voltage of 5000 Vrms.
