The i.MX (Media Extensions) series provides a leap in performance with an ARM9™ microprocessor core and highly integrated system functions. The i.MX processor features the advanced and power-efficient ARM920T™ core that operates at speeds up to 100 MHz. Integrated modules, which include a USB device and an LCD controller, support a suite of peripherals to enhance portable products.

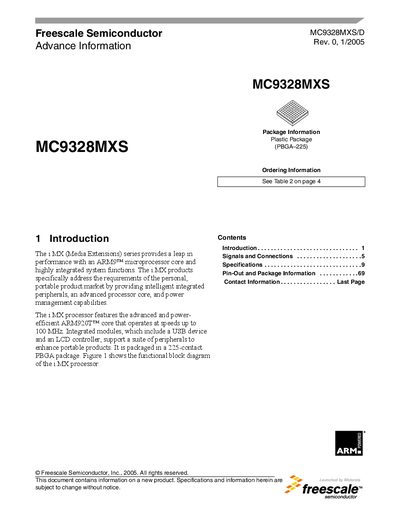

This document provides advance information on the MC9328MXS, a member of the i.MX series designed for portable products. It features an advanced and power-efficient ARM920T microprocessor core operating at speeds up to 100 MHz.
The processor includes highly integrated system functions such as a USB device controller, LCD controller, SDRAM controller, and various peripheral interfaces including UARTs, SPI, I2C, and PWM. It is packaged in a 225-contact PBGA package.
| Microprocessor Core | ARM920T |
|---|---|
| Operating Speed | up to 100 MHz |
| Package Type | 225-contact PBGA |
| Operating Voltage Range (Core) | 1.7 V to 1.9 V |
| Operating Voltage Range (I/O) | 1.7 V to 3.3 V |
The i.MX processor is targeted for advanced information appliances, smart phones, Web browsers, and messaging applications.
It uses a 225-contact PBGA package.
