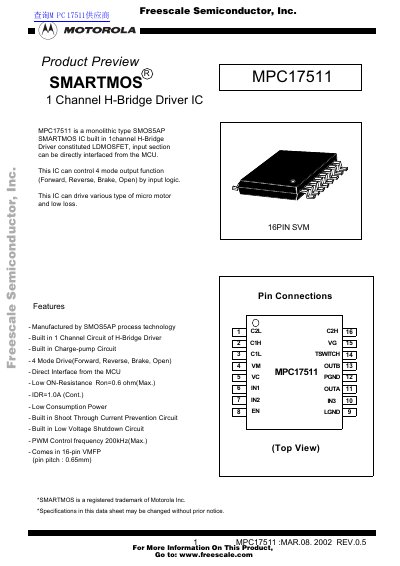

MPC17511 is a monolithic type SMOS5AP SMARTMOS IC built in 1channel H-Bridge Driver constituted LDMOSFET, input section can be directly interfaced from the MCU. This IC can control 4 mode output function (Forward, Reverse, Brake, Open) by input logic. This IC can drive various type of micro motor and low loss.
The MPC17511 is a monolithic type SMARTMOS IC built in a 1-channel H-Bridge Driver configuration using LDMOSFET technology. The input section can be directly interfaced from an MCU, allowing control of four output modes: Forward, Reverse, Brake, and Open via logic inputs.
Key features include a built-in charge-pump circuit, shoot-through current prevention, and low voltage shutdown protection. It is designed to drive various types of micro motors with low loss, offering a maximum ON-resistance (Ron) of 0.6 ohm and a continuous driver output current (IDR) of 1.0A.
| Driver Output Current (continuous) | 1.0 A |
|---|---|
| Low ON-Resistance Ron | 0.6 ohm(Max.) |
| PWM Control frequency | 200KHz(Max.) |
| Operating Junction Temperature | -55 to 150 degC |
| Driver Output ON Resistance Typ. | 0.46 ohm |
The IC can control four mode output functions: Forward, Reverse, Brake, and Open.
Yes, the input section can be directly interfaced from an MCU.
