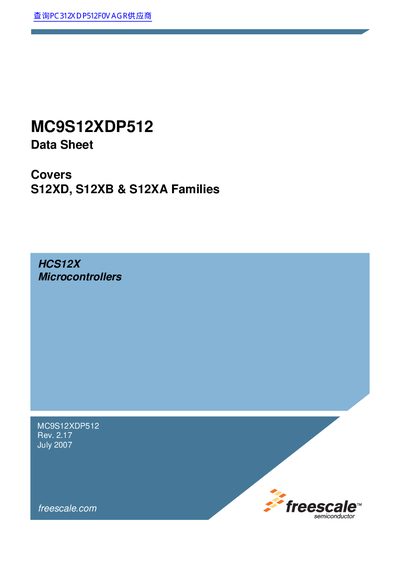

This document introduces the data sheet of MC9S12XDP512, including the characteristics of the S12XD, S12XB and S12XA families
This document is a comprehensive data sheet for the Freescale MC9S12XDP512 microcontroller, which belongs to the HCS12X family. It covers the S12XD, S12XB, and S12XA families and provides detailed information on various integrated modules including clocks, analog-to-digital converters, timers, and communication interfaces.
The datasheet includes extensive technical specifications such as electrical characteristics, package information, and ordering details. It also features a detailed register map for system configuration and debugging modules, along with recommended PCB layout guidelines for implementation.
| Product Family | HCS12X Microcontrollers |
|---|---|
| Covered Families | S12XD, S12XB & S12XA |
| Document Revision | Rev. 2.17 |
| Publication Date | July 2007 |
| Technology | SuperFlash |
It is a microcontroller that incorporates SuperFlash technology.
You must refer to the CPU S12X Reference Manual because this document excludes that specific module.
The VDDA supply voltage must be between 3.15V and 3.6V.
