This document is a data sheet for HCS12X microcontrollers, covering the S12XD, S12XB, and S12XA families. It provides information on the features and characteristics of the products, as well as relevant technical specifications.

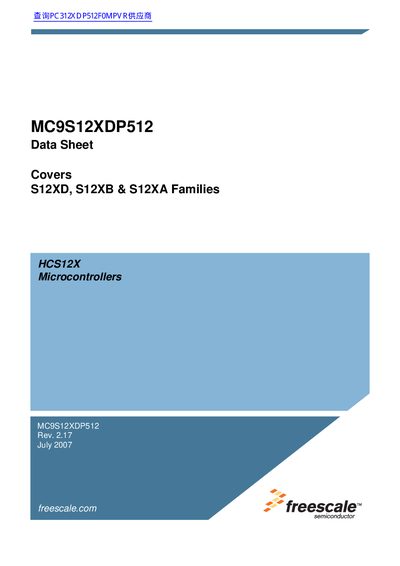

This document is a comprehensive data sheet for the Freescale MC9S12XDP512 microcontroller, covering the $12XD, S12XB, and $12XA families. It provides detailed technical specifications, electrical characteristics, and descriptions of various integrated modules such as the Analog-to-Digital Converter, Serial Communication Interface, and Voltage Regulator.
The guide includes information on memory mapping, debugging modules, interrupt structures, and port integration. It also features appendices with ordering information, security details, and recommended PCB layout guidelines for system designers.
| Document Revision | Rev. 2.17 |
|---|---|
| Publication Date | July 2007 |
| Covered Families | $12XD, S12XB & $12XA |
| Technology | SuperFlash |
This document covers the $12XD, S12XB, and $12XA families.
Information for the S12X CPU is not in this document; refer to the CPU S12X Reference Manual.
The maximum wait current (IDD wait) is 95mA.
