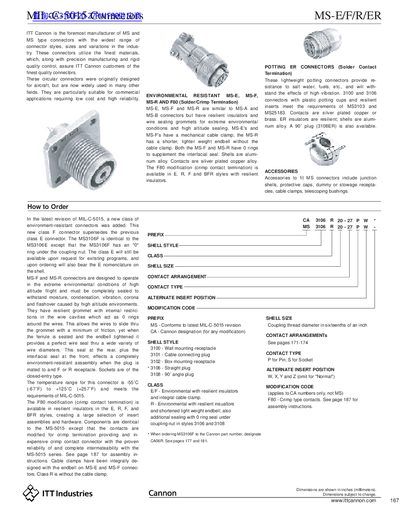

dimensions, specifications and features of itt cannon ms-e/f/r/er connectors
This document provides detailed information on ITT Cannon's MIL-C-5015 series circular connectors, specifically the environment-resistant models MS-E, MS-F, and MS-R. Originally designed for aircraft applications, these connectors are widely used in commercial fields requiring low cost and high reliability due to their resilient insulators and wire sealing grommets.
| Temperature Range | -55˚C (-67˚F) to +125˚C (+257˚F) |
|---|---|
| Test Voltage (Mated) | up to 15,000 volts DC |
| Operating Voltage (DC) | 5,000 VDC |
| Shell Material | aluminum alloy |
| Contact Material | silver plated copper alloy |
The MS3106F is identical to the MS3106E except that the MS3106F has an "0" ring under the coupling nut.
The F80 modification indicates crimp type contacts.
