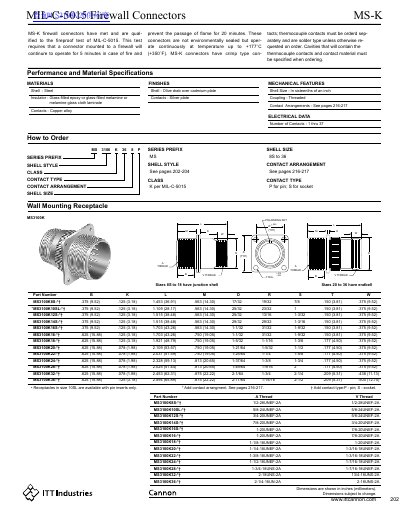

ITT MIL-C-5015 Firewall Connector MS-K handbook
This document provides performance and material specifications for the ITT Cannon MS-K series of firewall connectors. The connectors are designed to meet the fireproof test requirements of MIL-C-5015, ensuring operation in case of fire while preventing flame passage. They feature steel shells with olive drab over cadmium plating and silver-plated copper alloy contacts.
Read onlineITT MIL-C-5015 specifications
| Standard Compliance | MIL-C-5015 Firewall Connectors MS-K |
|---|---|
| Shell Material | Steel, Olive drab over cadmium plate |
| Contact Plating | Silver plate |
| Operating Temperature | +177˚C (+350˚F) |
| Fire Test Duration | 5 minutes operation, 20 minutes flame prevention |
All ITT MIL-C-5015 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the contact type designation?
P denotes pin type, while S denotes socket type.
Are the connectors environmentally sealed?
No, these connectors are not environmentally sealed.
What is the difference between MS-E and MS-F connectors?
The MS3106F is identical to the MS3106E except that the MS3106F has an "0" ring under the coupling nut.
From: ITT Cannon MS-E/F/R/ER MIL-C-5015 Connectors Product Data Sheet
What modification code indicates crimp type contacts?
The F80 modification indicates crimp type contacts.
From: ITT Cannon MS-E/F/R/ER MIL-C-5015 Connectors Product Data Sheet
