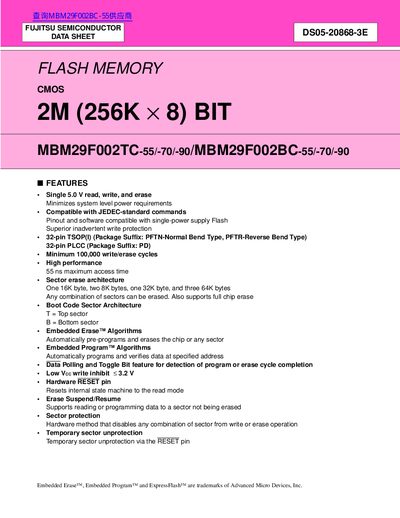

MBM29F002TC-55/-70/-90/MBM29F002BC-55/-70/-90 is a 2M (256K × 8) BIT CMOS flash memory chip released by Fujitsu Semiconductor. It supports JEDEC-standard commands, is compatible with single-power supply Flash, and has a minimum of 100,000 write/erase cycles and a maximum access time of 55ns
The MBM29F002TC/BC is a 2 M-bit (256K x 8) bit CMOS Flash memory designed for in-system programming with a standard 5.0 V supply. It offers access times between 55 ns and 90 ns and is available in 32-pin TSOP(I) and PLCC packages.
Key features include sector erase architecture, embedded program and erase algorithms, hardware reset functionality, and superior inadvertent write protection. The device supports single power supply operation without requiring a separate high voltage source for programming or erasing.
| Memory Capacity | 2 M-bit (256K x 8) |
|---|---|
| Operating Voltage | Single 5.0 V |
| Access Time (Max) | 55 ns to 90 ns |
| Write/Erase Cycles | Minimum 100,000 |
No, it operates with a single 5.0 V supply for both read and program functions.
The device offers access times up to a maximum of 90 ns (with 55 ns also available).
