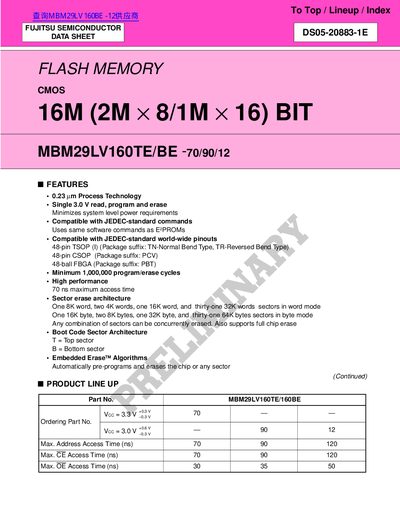

MBM29LV160TE/BE is a 16Mbit CMOS flash memory chip produced by Fujitsu Semiconductor. It supports 3.0V read, program and erase, is compatible with JEDEC standard commands, uses the same software commands as E2PROMs, is compatible with JEDEC standard world-wide pinouts, and comes in 48-pin TSOP, 48-pin CSOP, and 48-ball FBGA packages. It has 1,000,000 program/erase cycles and a maximum access time of 70ns. It supports sector erase, which allows any combination of sectors to be erased concurrently. It also supports full chip erase.
The Fujitsu MBM29LV160TE/BE is a 16M-bit, 3.0 V-only Flash memory organized as 2M bytes of 8 bits each or 1M words of 16 bits each. It is designed for in-system programming using a standard 3.0 V Vcc supply, eliminating the need for 12.0 V Vee and 5.0 V Vcc during write or erase operations. The device is available in 48-pin TSOP, 48-pin CSOP, and 48-ball FBGA packages.
| Memory Capacity | 16M-bit |
|---|---|
| Operating Voltage | 3.0 V |
| Access Time | 70 ns maximum |
| Program/Erase Cycles | 1,000,000 |
No, it operates with a single 3.0 V supply for both read and write functions.
The maximum access time is 70 ns.
Yes, the device features a sector erase architecture allowing individual sectors to be erased and reprogrammed.
