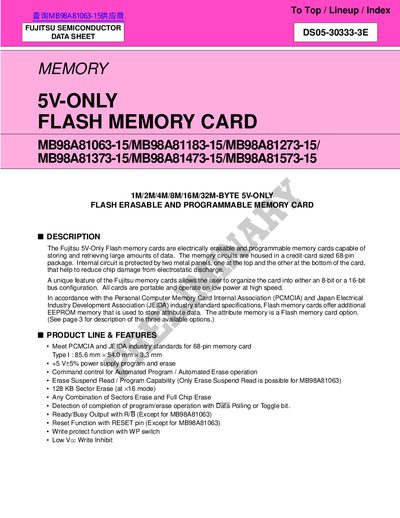

Fujitsu 5V-Only Flash memory cards are electrically erasable and programmable memory cards capable of storing and retrieving large amounts of data. They are housed in a credit-card sized 68-pin package and offer additional EEPROM memory that is used to store attribute data. The attribute memory is a Flash memory card option.
The Fujitsu 5V-Only Flash memory cards are electrically erasable and programmable memory cards capable of storing and retrieving large amounts of data. The memory circuits are housed in a credit-card sized 68-pin package, and the internal circuit is protected by two metal panels to reduce chip damage from electrostatic discharge.
| Power Supply | +5.0 V +5% |
|---|---|
| Package Type | 68-pin |
| Dimensions | 85.6 mm x 54.0 mm x 3.3 mm |
| Access Time | 150 ns |
| Attribute Memory | 16K bit EEPROM |
| Bus Configuration | 8-bit or 16-bit |
The cards meet PCMCIA and JEIDA industry standard specifications.
No, the attribute memory option is not available for the MB98A81063 model.
The chip erase unit size is 512 KB.
