The document provides specifications and features of DDR SDRAM 256MB, 512MB, and 1GB Registered DIMM. These modules are based on 256Mb E-die (x4, x8) technology and feature 72-bit ECC and 1,700 / 1,200mil height. The ordering information includes part numbers and specifications of modules with different capacities and organizations.

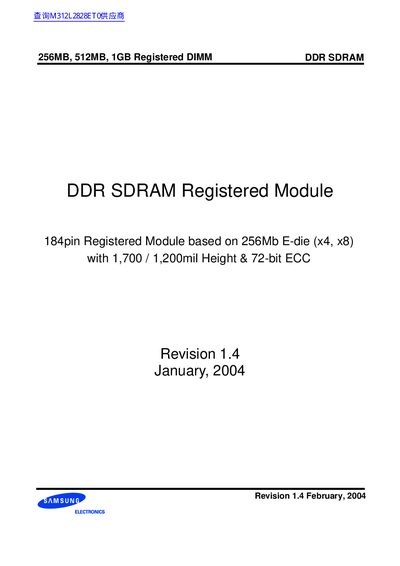

This document is a technical datasheet for Samsung's 256MB, 512MB, and 1GB Registered DIMM DDR SDRAM memory modules. The product line includes part numbers such as M383L3223ETS (256MB), M383L6423ETS (512MB x8), and M383L6420ETS (512MB x4). These 184-pin modules are based on Samsung's 256Mb E-die technology.
| Density | 256MB, 512MB, 1GB |
|---|---|
| Pin Count | 184pin |
| Technology Base | 256Mb E-die (x4, x8) |
| ECC Support | 72-bit ECC |
| Power Supply Vdd | 2.5V +0.2V |
| Operating Speeds | DDR266 (133MHz), DDR200 (100MHz) |
| Module Height | 1,700mil / 1,200mil |
The datasheet lists availability for 256MB, 512MB, and 1GB capacities.
Yes, the modules feature 72-bit Error Correction Code (ECC).
The operating power supply Vdd is specified as 2.5V +0.2V.
